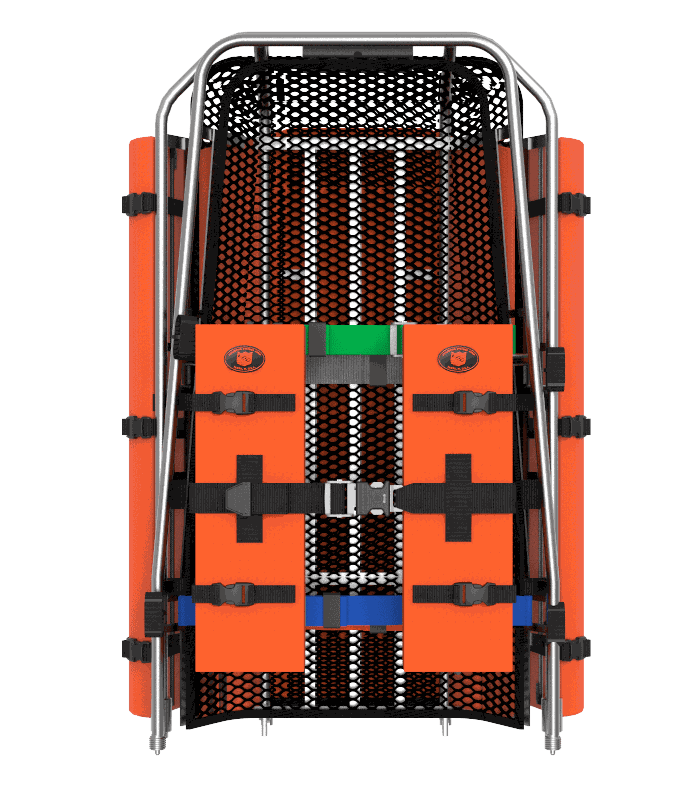

406-F & 406-D-F Medevac IIA Break-Apart Litters, Stainless Steel with Flotation Kit
LSC#406-F

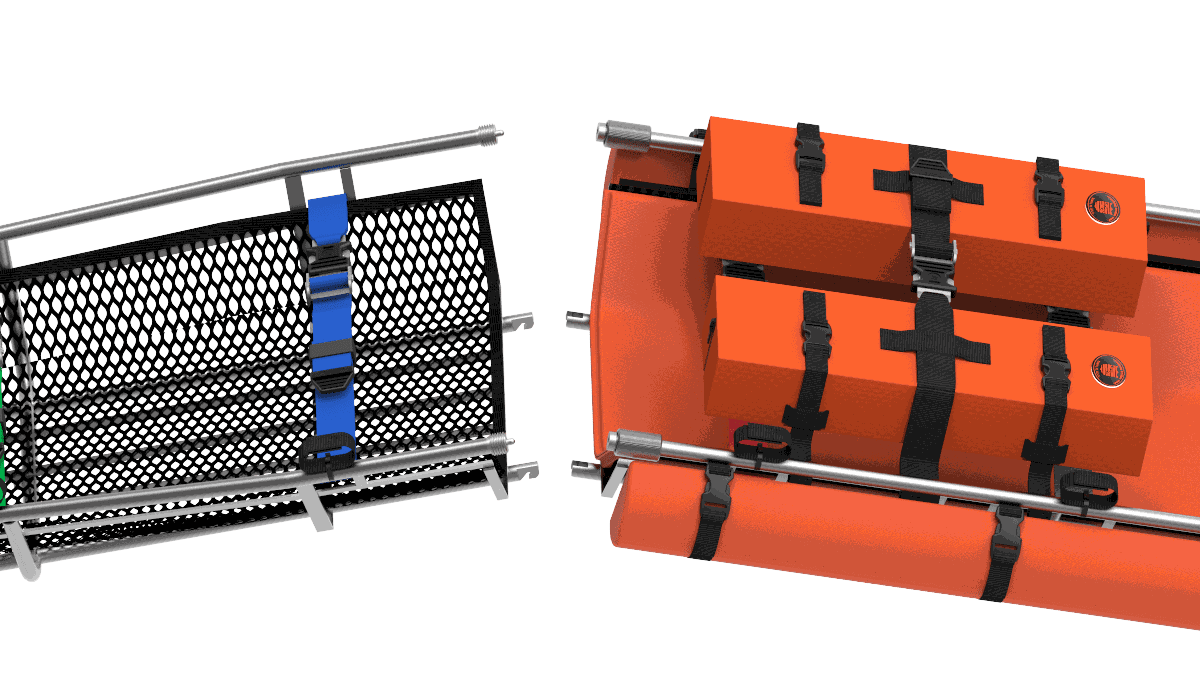

The Medevac IIA is the break-apart model of the Medevac II series, the most widely used helicopter rescue litter, standard equipment aboard all US Coast Guard helicopters and rescue boats and in use with all branches of the US Military. The break-apart frame occupies approximately half the stowage space of rigid litters, with stainless steel screw-couplers and self-aligning pins securing the top tubes; when assembled it is as robust as the rigid Medevac II, proof load tested to 2,600 lbs with no yield. It is a modern Stokes-type litter constructed for long life in the marine environment.
Authorised distributor · Genuine stock · Servicing & certification available
Specifications
Frame materialPolished Type 304 stainless steel
Frame typeBreak-apart (Medevac IIA)
Proof load2,600 lbs with no yield
StowageApproximately half the space of rigid litters
CouplersScrew-couplers with self-aligning pins; top tube and skid couplers cast or machined from solid stainless steel
Tube wall thickness30% greater than other MIL-SPEC and commercial litters
RestraintsFive color-coded patient restraint straps with double locking Quick Release Safety Buckles
FlotationNarrow Flotation Kit #103 reduces installed-flotation width by 4 in (half-width D-shaped logs and foam back pad)
Standards & certifications
Applications
Search & Rescue
AMSA and state SAR readiness and logistics.
Defence
ADF and allied mission-systems support.
Marine & Commercial
Commercial vessels, workboats and coastal operators.
Aviation
Rotary and fixed-wing, passenger and crew survival.
Downloads
Servicing & certification by AMSG Aviation
This item can be inspected, repacked and re-certified through our CASA and EASA aligned facilities, with full traceability and audit-ready documentation. Ask us about scheduled servicing and managed resupply.
